Overview

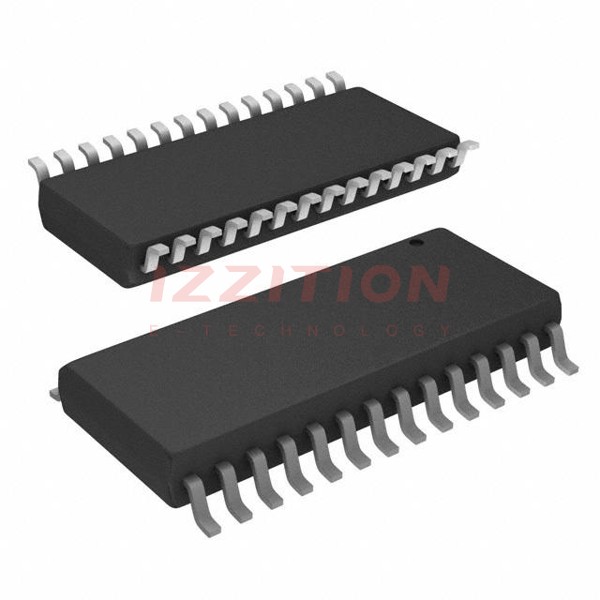

The AD1877JR is a high-performance, single-supply, 16-bit stereo analog-to-digital converter (ADC) manufactured by Analog Devices Inc. This device is specifically designed for audio applications, offering high-quality conversion and robust performance. The AD1877JR is available in a 28-lead SOIC package and operates over a temperature range of 0°C to 70°C.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 16 bits |
| Sampling Rate | Up to 48 kHz |
| Package Type | 28-lead SOIC |
| Operating Temperature | 0°C to 70°C |
| Supply Voltage | Single supply |
| Interface | Serial |
Key Features
The AD1877JR features high-performance audio conversion with a signal-to-noise ratio (SNR) and total harmonic distortion (THD) that make it suitable for high-quality audio applications. Key features include:
- Stereo audio conversion
- Single-supply operation
- High resolution of 16 bits
- Sampling rates up to 48 kHz
- Serial interface for data output
Applications
The AD1877JR is designed for various audio-related applications, including:
- Professional audio equipment
- Consumer audio devices
- Digital audio workstations
- Audio interfaces and sound cards
- Home theater systems
Q & A
- What is the resolution of the AD1877JR ADC?
The AD1877JR has a resolution of 16 bits. - What is the maximum sampling rate of the AD1877JR?
The maximum sampling rate is up to 48 kHz. - In what package is the AD1877JR available?
The AD1877JR is available in a 28-lead SOIC package. - What is the operating temperature range of the AD1877JR?
The operating temperature range is from 0°C to 70°C. - Is the AD1877JR suitable for professional audio applications?
Yes, it is designed for high-quality audio applications, including professional audio equipment. - What type of interface does the AD1877JR use for data output?
The AD1877JR uses a serial interface for data output. - Is the AD1877JR a single-supply or dual-supply device?
The AD1877JR is a single-supply device. - What are some common applications of the AD1877JR?
Common applications include professional audio equipment, consumer audio devices, digital audio workstations, audio interfaces, and home theater systems. - Who is the manufacturer of the AD1877JR?
The AD1877JR is manufactured by Analog Devices Inc. - Is the AD1877JR still in production?
Yes, the AD1877JR is currently in production and available from various distributors.
