Overview

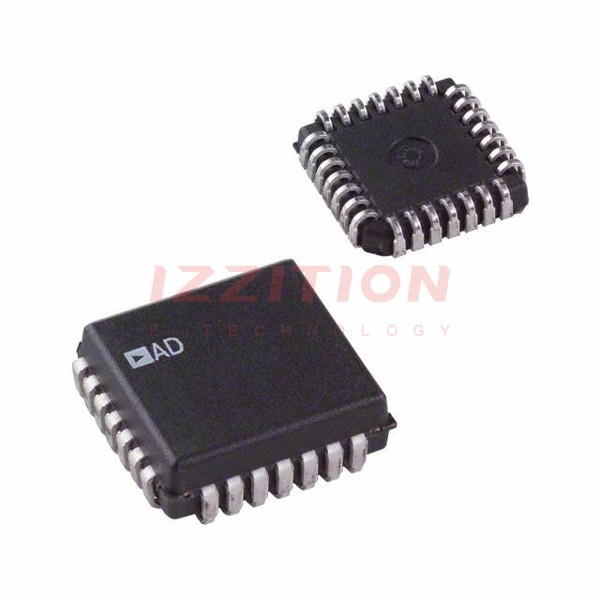

The AD1671JP-REEL is a high-performance analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed to convert analog signals into digital signals, which is crucial in various electronic systems that require precise data conversion. The AD1671JP-REEL is part of the AD1671 series, known for its reliability and accuracy in data conversion processes.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12-bit |
| Sampling Rate | 1.25 MSPS (Mega Samples Per Second) |
| Package Type | PDIP (Plastic Dual In-Line Package) or equivalent reel packaging |
| Operating Voltage | |
| Temperature Range | Commercial or Industrial grades available |
| Export Classification | EAR99 |
Key Features
- High-resolution 12-bit analog-to-digital conversion
- Fast sampling rate of 1.25 MSPS
- Low power consumption
- High accuracy and linearity
- Robust against noise and interference
- Available in various package types including PDIP and reel packaging for ease of use in different applications
Applications
The AD1671JP-REEL is versatile and can be used in a variety of applications, including:
- Medical devices: For precise signal conversion in medical imaging and diagnostic equipment.
- Industrial control systems: For monitoring and controlling industrial processes.
- Aerospace and defense: For high-reliability data conversion in military and aerospace applications.
- Automotive systems: For sensor data conversion in automotive control systems.
- Test and measurement equipment: For accurate data acquisition and analysis.
Q & A
- What is the resolution of the AD1671JP-REEL ADC?
The AD1671JP-REEL has a resolution of 12 bits. - What is the sampling rate of the AD1671JP-REEL?
The sampling rate is 1.25 MSPS. - What package types are available for the AD1671JP-REEL?
The component is available in PDIP and reel packaging. - What is the typical operating voltage for the AD1671JP-REEL?
The typical operating voltage is ±5V or ±10V. - What are the key features of the AD1671JP-REEL?
Key features include high-resolution conversion, fast sampling rate, low power consumption, high accuracy, and robustness against noise. - In which applications is the AD1671JP-REEL commonly used?
Common applications include medical devices, industrial control systems, aerospace and defense, automotive systems, and test and measurement equipment. - What is the export classification of the AD1671JP-REEL?
The export classification is EAR99. - How does the AD1671JP-REEL convert analog signals to digital signals?
The AD1671JP-REEL converts analog signals through steps such as sampling, holding, and converting the analog signal into a digital signal. - What are the benefits of using the AD1671JP-REEL in industrial control systems?
The benefits include precise data conversion, fast response times, and robustness against industrial noise and interference. - Is the AD1671JP-REEL suitable for high-reliability applications?
Yes, the AD1671JP-REEL is suitable for high-reliability applications due to its high accuracy and robust design.
