Overview

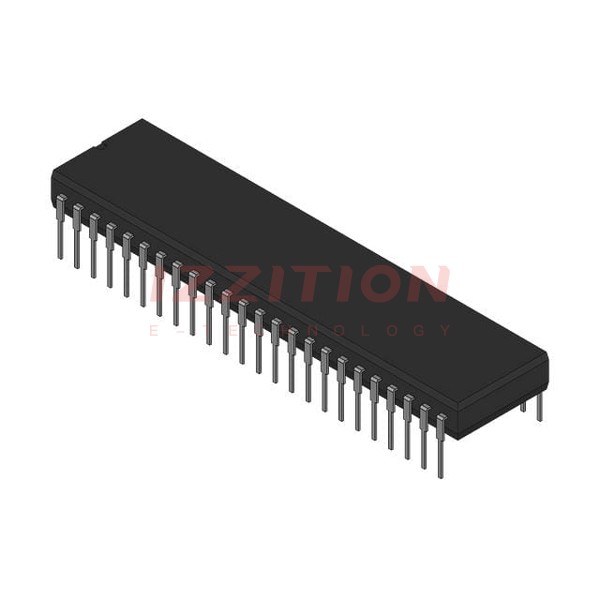

The AD1385TD is a 16-bit hybrid analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed to convert analog signals into digital signals, making it a crucial part of various data acquisition and signal processing systems. The AD1385TD is known for its high precision and reliability, making it suitable for a wide range of applications in industrial, medical, and other high-performance environments.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Part Number | AD1385TD |
| Number of Bits | 16 |
| Package Type | DIP (48-pin) |
| Number of Terminals | 48 |
| Operating Temperature Range | -55 °C to 125 °C |
| Operating Supply Voltage | ±10.8 V to ±13.2 V |
| Mounting Style | Through Hole |
| Data Interface | Parallel |
| Packing Method | Tube |
Key Features
- High Resolution: The AD1385TD offers a 16-bit resolution, providing high accuracy in analog-to-digital conversions.
- Hybrid Construction: This ADC is built using hybrid technology, combining the benefits of different materials for enhanced performance.
- Wide Operating Temperature Range: It operates over a temperature range of -55 °C to 125 °C, making it suitable for harsh environments.
- Parallel Data Interface: The component uses a parallel data interface for efficient data transfer.
- Through Hole Mounting: It is mounted using through-hole technology, ensuring robust and reliable connections.
Applications
The AD1385TD is versatile and can be used in various applications, including:
- Industrial Automation: For precise measurement and control in industrial settings.
- Medical Devices: In medical equipment where high accuracy and reliability are crucial.
- Data Acquisition Systems: For collecting and processing data in scientific and engineering applications.
- Aerospace and Defense: In systems requiring high performance and reliability under extreme conditions.
Q & A
- What is the resolution of the AD1385TD ADC?
The AD1385TD has a resolution of 16 bits. - What is the package type of the AD1385TD?
The AD1385TD is packaged in a 48-pin DIP (Dual In-Line Package). - What is the operating temperature range of the AD1385TD?
The operating temperature range is -55 °C to 125 °C. - What is the data interface type of the AD1385TD?
The AD1385TD uses a parallel data interface. - What is the mounting style of the AD1385TD?
The AD1385TD is mounted using through-hole technology. - What is the typical application of the AD1385TD?
The AD1385TD is typically used in industrial automation, medical devices, data acquisition systems, and aerospace and defense applications. - What is the supply voltage range for the AD1385TD?
The supply voltage range is ±10.8 V to ±13.2 V. - How many terminals does the AD1385TD have?
The AD1385TD has 48 terminals. - What is the packing method for the AD1385TD?
The AD1385TD is packed in tubes. - Is the AD1385TD suitable for harsh environments?
Yes, the AD1385TD is suitable for harsh environments due to its wide operating temperature range.
