Overview

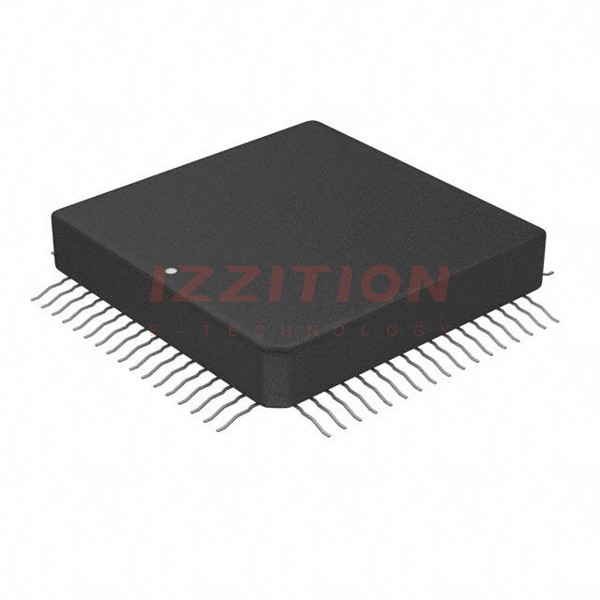

The AD10465AZ is a high-performance, dual-channel analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed to meet the demands of high-speed data acquisition and signal processing applications. With its 14-bit resolution and a sampling rate of 65 MSPS (Mega Samples Per Second), the AD10465AZ offers excellent accuracy and speed, making it suitable for a wide range of industrial, medical, and communications applications.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 14 bits |
| Sampling Rate | 65 MSPS |
| Number of Channels | Dual Channel |
| Input Range | Varies by configuration (e.g., +/-1V, +/-5V, +/-10V) |
| Power Supply | Typically 3.3V or 5V |
| Operating Temperature | Industrial temperature range (typically -40°C to +85°C) |
| Package Type | Varies (e.g., BGA, QFN) |
Key Features
- Dual-channel operation for simultaneous sampling of two analog signals.
- High-speed sampling rate of 65 MSPS.
- 14-bit resolution providing high accuracy and precision.
- Low power consumption, making it suitable for battery-powered devices.
- High signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR) for excellent signal quality.
- Flexible input ranges and configurations to accommodate various signal types.
Applications
The AD10465AZ is versatile and can be used in a variety of applications, including:
- High-speed data acquisition systems.
- Medical imaging and diagnostic equipment.
- Wireless communication systems, such as base stations and handsets.
- Industrial control and automation systems.
- Aerospace and defense systems requiring high reliability and performance.
Q & A
- What is the resolution of the AD10465AZ ADC?
The AD10465AZ has a resolution of 14 bits. - What is the maximum sampling rate of the AD10465AZ?
The maximum sampling rate is 65 MSPS. - How many channels does the AD10465AZ support?
The AD10465AZ supports dual-channel operation. - What are the typical input ranges for the AD10465AZ?
The input ranges vary by configuration but include options such as +/-1V, +/-5V, and +/-10V. - What is the typical power supply voltage for the AD10465AZ?
The typical power supply voltage is 3.3V or 5V. - What is the operating temperature range for the AD10465AZ?
The operating temperature range is typically -40°C to +85°C. - What are some common applications for the AD10465AZ?
Common applications include high-speed data acquisition, medical imaging, wireless communication systems, industrial control, and aerospace/defense systems. - What is the significance of the 'AZ' suffix in the part number AD10465AZ?
The 'AZ' suffix typically indicates the specific package type and temperature grade of the component. - How does the AD10465AZ ensure high signal quality?
The AD10465AZ ensures high signal quality through its high SNR and SFDR. - Is the AD10465AZ suitable for battery-powered devices?
Yes, the AD10465AZ is suitable for battery-powered devices due to its low power consumption.
