Overview

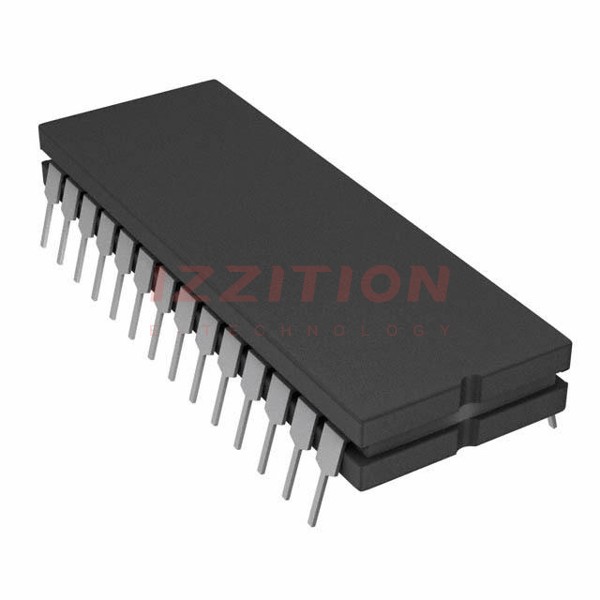

The 5962-9756401QXA is a 16-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This integrated circuit is housed in a 28-pin ceramic dual in-line package (CERDIP) and is designed for high-precision data acquisition applications. The component is part of Analog Devices' extensive range of ADCs, known for their reliability and performance in various industrial and military environments.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Resolution | 16 bits | |
| Package Type | 28-pin CERDIP | |
| Operating Temperature Range | -55°C to +125°C | °C |
| Supply Voltage | ±5V | V |
| Conversion Time | Typically 30 μs | μs |
| Linearity Error | ±1 LSB (typical) | LSB |
Key Features
- High Resolution: The 5962-9756401QXA offers a 16-bit resolution, ensuring high precision in analog-to-digital conversions.
- Wide Operating Temperature Range: This ADC operates reliably over a temperature range of -55°C to +125°C, making it suitable for harsh environments.
- Fast Conversion Time: With a typical conversion time of 30 μs, this component is ideal for applications requiring rapid data acquisition.
- Low Linearity Error: The ADC features a low linearity error of ±1 LSB (typical), ensuring accurate conversions.
- Durable Packaging: The 28-pin CERDIP package provides robust protection against environmental factors.
Applications
The 5962-9756401QXA is designed for use in various high-reliability applications, including:
- Military and Aerospace: Its wide operating temperature range and high precision make it suitable for military and aerospace systems.
- Industrial Automation: This ADC is used in industrial control systems, data acquisition systems, and other precision measurement applications.
- Medical Devices: It can be employed in medical equipment that requires accurate and reliable analog-to-digital conversions.
- Test and Measurement Equipment: The component is also used in various test and measurement instruments where high precision is critical.
Q & A
- What is the resolution of the 5962-9756401QXA ADC?
The 5962-9756401QXA has a resolution of 16 bits.
- What is the package type of the 5962-9756401QXA?
The component is housed in a 28-pin CERDIP package.
- What is the operating temperature range of the 5962-9756401QXA?
The operating temperature range is -55°C to +125°C.
- What is the typical conversion time of the 5962-9756401QXA?
The typical conversion time is 30 μs.
- What is the linearity error of the 5962-9756401QXA?
The linearity error is typically ±1 LSB.
- What are the common applications of the 5962-9756401QXA?
Common applications include military and aerospace, industrial automation, medical devices, and test and measurement equipment.
- Who is the manufacturer of the 5962-9756401QXA?
The manufacturer is Analog Devices Inc.
- What is the supply voltage for the 5962-9756401QXA?
The supply voltage is ±5V.
- Where can I find the datasheet for the 5962-9756401QXA?
You can find the datasheet on the official Analog Devices website or through suppliers like Digi-Key and Mouser Electronics.
- Is the 5962-9756401QXA suitable for harsh environments?
Yes, it is suitable for harsh environments due to its wide operating temperature range and robust packaging.
