Overview

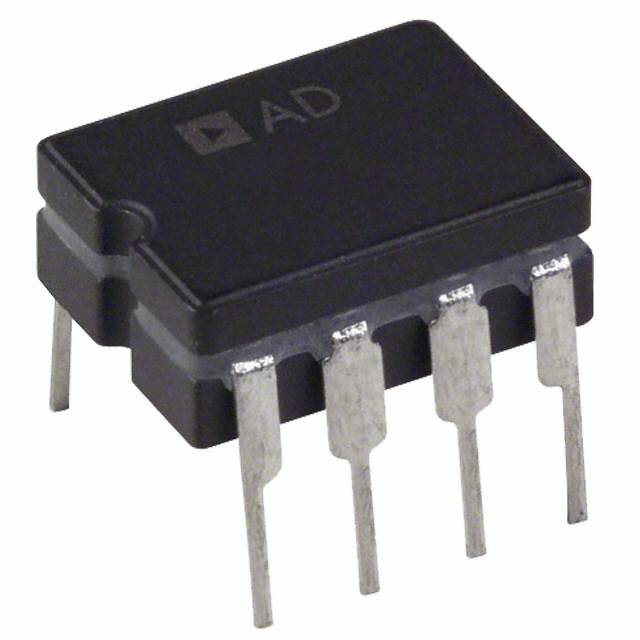

The 5962-8982402PA is a precision voltage reference device produced by Analog Devices Inc. It is part of the AD586 series, known for its high accuracy and stability. This device is particularly suited for applications requiring a reliable external reference voltage, such as in digital-to-analog (D/A) and analog-to-digital (A/D) converters.
Key Specifications
| Parameter | Value |
|---|---|
| Output Voltage | 5V or 10V (depending on the specific model within the AD586 series) |
| Temperature Range | -55°C to +125°C (for the AD586S and T models), -40°C to +85°C (for the AD586A and B models), 0°C to +70°C (for the AD586J, K, L, and M models) |
| Package Type | 8-Lead CerDIP, 8-Lead SOIC, 8-Lead PDIP |
| Accuracy | High accuracy, suitable for up to 14-bit A/D converters |
| Stability | Low drift and high stability over temperature |
Key Features
- High accuracy and stability, making it ideal for precision applications.
- Low drift over temperature, ensuring consistent performance.
- Available in various package types, including 8-Lead CerDIP, 8-Lead SOIC, and 8-Lead PDIP.
- Suitable for use in D/A and A/D converters requiring external precision references.
- Proprietary ion-implanted buried Zener diode technology for enhanced performance.
Applications
The 5962-8982402PA is recommended for use in a variety of applications, including:
- Digital-to-analog (D/A) converters, particularly those requiring 8-, 10-, 12-, 14-, or 16-bit resolution.
- Analog-to-digital (A/D) converters, especially successive approximation or integrating types with up to 14 bits of accuracy.
- Any system requiring a high-precision external voltage reference.
Q & A
- What is the primary function of the 5962-8982402PA?
The primary function is to provide a high-precision external voltage reference. - What are the typical output voltages for this device?
The typical output voltages are 5V or 10V, depending on the specific model within the AD586 series. - What are the available package types for this device?
The device is available in 8-Lead CerDIP, 8-Lead SOIC, and 8-Lead PDIP packages. - What is the temperature range for the AD586S and T models?
The temperature range for the AD586S and T models is -55°C to +125°C. - What is the temperature range for the AD586A and B models?
The temperature range for the AD586A and B models is -40°C to +85°C. - What is the temperature range for the AD586J, K, L, and M models?
The temperature range for the AD586J, K, L, and M models is 0°C to +70°C. - Why is this device suitable for D/A and A/D converters?
This device is suitable due to its high accuracy and stability, making it ideal for precision applications in D/A and A/D converters. - What technology is used in the AD586 series?
The AD586 series uses proprietary ion-implanted buried Zener diode technology. - Can this device be used in military and aerospace applications?
Yes, certain models of the AD586 series, such as the 5962-8982402PA, are qualified for military and aerospace use. - Where can I find more detailed specifications and documentation for this device?
You can find detailed specifications and documentation on the official Analog Devices website or through authorized distributors like Digi-Key and Mouser.
