Overview

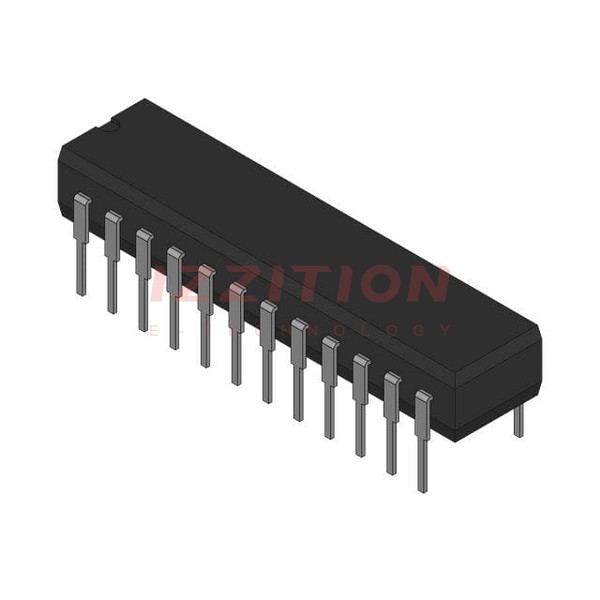

The 5962-8969801LX is an analog-to-digital converter (ADC) manufactured by Analog Devices Inc. This component is part of the data acquisition category and is specifically designed as a 10-bit successive approximation register (SAR) ADC. It operates at a sampling rate of 50 kilosamples per second (ksps) and features a parallel output interface. The ADC is packaged in a 24-pin ceramic dual in-line package (CDIP) and is notable for its dual marking as AD7579SQ/883B. However, it is important to note that this component is not RoHS compliant.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Part Number | 5962-8969801LX |
| Type | Analog-to-Digital Converter (ADC) |
| Resolution | 10-bit |
| Sampling Rate | 50 ksps |
| Output Interface | Parallel |
| Package Type | 24-Pin CDIP |
| RoHS Compliance | Not Compliant |
Key Features
- 10-bit Resolution: Provides high accuracy in digital conversion.
- Successive Approximation Register (SAR) Architecture: Ensures efficient and precise conversion.
- 50 ksps Sampling Rate: Supports moderate to high-speed data acquisition applications.
- Parallel Output Interface: Facilitates easy integration with microcontrollers and other digital systems.
- Dual Marking: Marked as AD7579SQ/883B, indicating its compliance with specific military standards.
Applications
The 5962-8969801LX ADC is suitable for various data acquisition and conversion applications, including:
- Industrial Automation: For monitoring and controlling industrial processes.
- Medical Devices: For precise measurement in medical equipment.
- Aerospace and Defense: Given its dual marking and military standards compliance, it is often used in military and aerospace applications.
- Test and Measurement Equipment: For accurate data collection in testing and measurement instruments.
