Overview

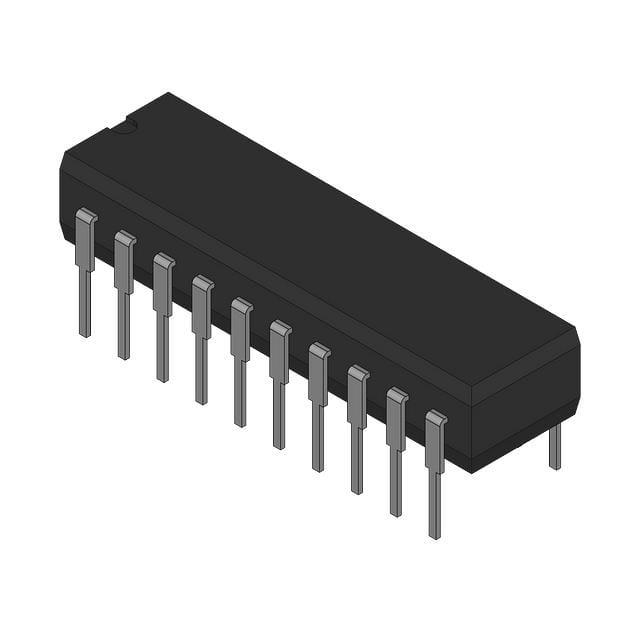

The 5962-8850501RA is a high-performance analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is part of the AD573 series, known for its precision and versatility in various analog-to-digital conversion applications. The AD573 offers true 10-bit accuracy and is designed to handle both unipolar and bipolar analog inputs, making it a robust choice for a wide range of industrial and military applications.
Key Specifications
| Parameter | Min | Typ | Max | Units |
|---|---|---|---|---|
| Resolution | 10 | 10 | 10 | Bits |
| Relative Accuracy | ±1 | ±1/2 | ±1 | LSB |
| Full-Scale Calibration | ±2 | LSB | ||
| Operating Supply Voltage | +5 V, -12 V or -15 V | V | ||
| Operating Temperature Range | -55 °C | 125 °C | °C | |
| Package Type | 40-CDIP |
Key Features
- True 10-bit accuracy with no missing codes over the entire operating temperature range.
- Adaptable to either unipolar (0 V to +10 V) or bipolar (-5 V to +5 V) analog inputs.
- Performance guaranteed with +5 V and -12 V or -15 V supplies.
- Full-scale calibration trimmable to zero with an external 50 Ω potentiometer.
- Available in a version compliant with MIL-STD-883.
Applications
The 5962-8850501RA is suitable for a variety of applications, including industrial control systems, medical devices, and military equipment. Its high accuracy and robust operating range make it an ideal choice for environments requiring precise analog-to-digital conversion.
Q & A
- What is the resolution of the 5962-8850501RA ADC?
The resolution of the 5962-8850501RA ADC is 10 bits. - What are the operating supply voltages for this ADC?
The operating supply voltages are +5 V and -12 V or -15 V. - Can the 5962-8850501RA handle bipolar analog inputs?
Yes, it can handle both unipolar and bipolar analog inputs. - What is the operating temperature range of this ADC?
The operating temperature range is from -55 °C to 125 °C. - Is the 5962-8850501RA compliant with any military standards?
Yes, it is available in a version compliant with MIL-STD-883. - How is the full-scale calibration of the ADC achieved?
The full-scale calibration is trimmable to zero with an external 50 Ω potentiometer. - What type of package does the 5962-8850501RA come in?
The 5962-8850501RA comes in a 40-CDIP package. - What is the relative accuracy of the ADC?
The relative accuracy is ±1 LSB. - Does the ADC have any missing codes over its operating temperature range?
No, it exhibits no missing codes over its entire operating temperature range. - What is the typical application of the 5962-8850501RA?
It is typically used in industrial control systems, medical devices, and military equipment.
