Overview

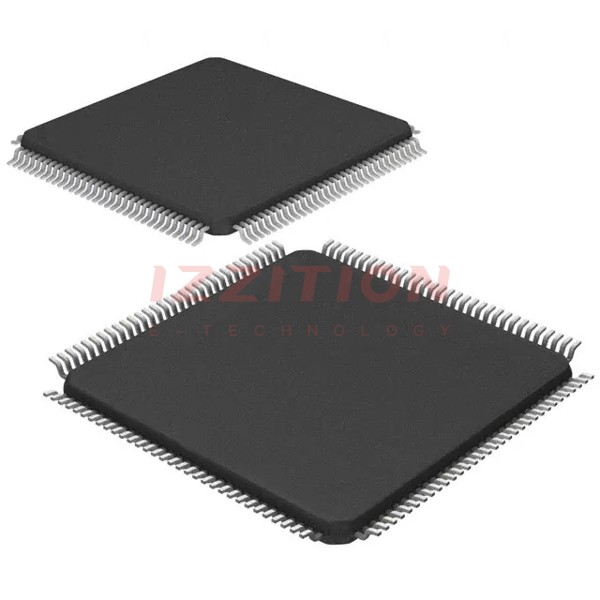

The TM4C1294KCPDT is a high-performance 32-bit microcontroller from Texas Instruments, part of the Tiva C Series. It is based on the Arm Cortex-M4F processor core, operating at a maximum frequency of 120 MHz. This microcontroller is designed to provide a robust set of peripherals and features, making it suitable for a wide range of applications, including industrial automation, medical devices, and consumer electronics.
Key Specifications
| Specification | Details |
|---|---|
| Processor Core | Arm Cortex-M4F |
| Operating Frequency | Up to 120 MHz |
| Flash Memory | 512 KB |
| RAM | 256 KB |
| USB | USB OTG/Device/Host |
| Ethernet | 10/100 Mbps MAC+PHY |
| Peripheral Interfaces | UART, I2C, SPI, QSSI, CAN, ADC, PWM, QEI, etc. |
| Debugging | JTAG and ARM Serial Wire Debug |
| Package | 100-pin LQFP |
Key Features
- Arm Cortex-M4F Processor Core: Provides high performance and efficiency with a floating-point unit (FPU).
- On-Chip Memory: 512 KB of flash memory and 256 KB of RAM.
- USB and Ethernet: Supports USB OTG/Device/Host and 10/100 Mbps Ethernet MAC+PHY.
- Advanced Motion Control: Includes features like PWM, QEI, and ADC for precise control and measurement.
- Serial Communications Peripherals: UART, I2C, SPI, QSSI, and CAN interfaces for versatile communication options.
- System Integration: Includes system timers, NVIC, SCB, and MPU for comprehensive system management.
- Debugging Capabilities: Supports JTAG and ARM Serial Wire Debug for efficient debugging.
Applications
- Industrial Automation: Suitable for control systems, motor control, and industrial networking.
- Medical Devices: Can be used in medical diagnostic equipment, patient monitoring systems, and other medical applications.
- Consumer Electronics: Applicable in home appliances, gaming consoles, and other consumer electronic devices.
- Automotive Systems: Used in automotive control units, infotainment systems, and safety systems.
- Internet of Things (IoT): Ideal for IoT devices requiring advanced processing and communication capabilities.
Q & A
- What is the processor core of the TM4C1294KCPDT?
The processor core is the Arm Cortex-M4F.
- What is the maximum operating frequency of the TM4C1294KCPDT?
The maximum operating frequency is 120 MHz.
- How much flash memory and RAM does the TM4C1294KCPDT have?
The TM4C1294KCPDT has 512 KB of flash memory and 256 KB of RAM.
- Does the TM4C1294KCPDT support USB and Ethernet?
Yes, it supports USB OTG/Device/Host and 10/100 Mbps Ethernet MAC+PHY.
- What debugging interfaces are available on the TM4C1294KCPDT?
The TM4C1294KCPDT supports JTAG and ARM Serial Wire Debug.
- What types of serial communication peripherals are available on the TM4C1294KCPDT?
The TM4C1294KCPDT includes UART, I2C, SPI, QSSI, and CAN interfaces.
- What is the package type of the TM4C1294KCPDT?
The package type is a 100-pin LQFP.
- What are some common applications of the TM4C1294KCPDT?
Common applications include industrial automation, medical devices, consumer electronics, automotive systems, and IoT devices.
- Does the TM4C1294KCPDT support advanced motion control features?
Yes, it includes features like PWM, QEI, and ADC for advanced motion control.
- Is there any software development kit available for the TM4C1294KCPDT?
Yes, the TivaWare for C Series software development kit is available for this microcontroller.
