Overview
The TLC541IFNR is an advanced 8-bit Analog to Digital Converter (ADC) manufactured by Texas Instruments. This device is part of the data acquisition integrated circuits category and is designed to convert analog signals into digital data efficiently. It features a successive approximation register (SAR) architecture, which ensures accurate and rapid conversions. The TLC541IFNR is particularly notable for its high-speed sampling rate of up to 40,000 samples per second, making it suitable for real-time data acquisition in various electronic systems.
Key Specifications
| Parameter | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 40,000 |
| Number of Inputs | 11 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | Selectable Address |
| Operating Temperature | -40°C ~ 85°C |

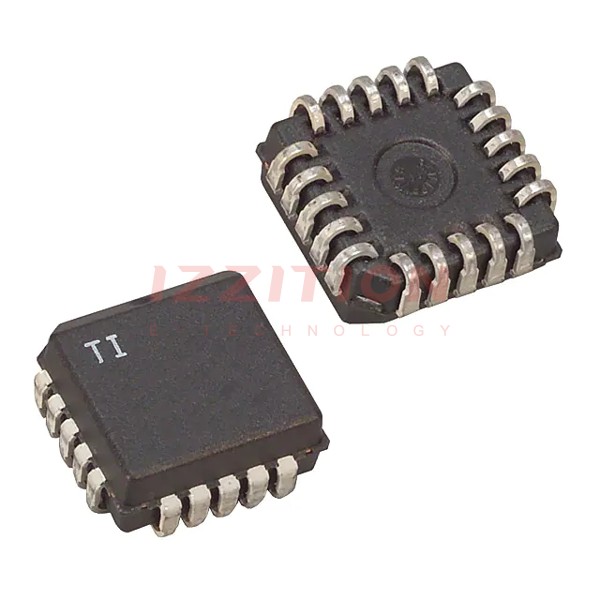

| Package / Case | 20-PLCC (9x9) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Key Features
- Selectable Address: Allows for the integration of multiple ADCs in a single system by selecting different addresses.
- 8-Bit Resolution: Provides precise analog-to-digital conversion.
- 11 Input Channels: Enables the simultaneous monitoring of multiple analog signals.
- High-Speed Sampling Rate: Samples at a rate of up to 40,000 samples per second.
- SAR Architecture: Utilizes a successive approximation register architecture for efficient and accurate conversions.
- External and Internal Reference: Supports both external and internal reference options for flexibility in system design.
- SPI Data Interface: Communicates with the host system using a Serial Peripheral Interface (SPI) data interface.
- RoHS Compliance: Lead-free and compliant with RoHS standards, ensuring safety and environmental compliance.
Applications
The TLC541IFNR is suitable for a wide range of applications, including:
- Industrial Control: Ideal for industrial automation and control systems that require rapid and accurate data acquisition.
- Instrumentation: Used in various instrumentation applications where precise analog-to-digital conversion is necessary.
- Data Acquisition Systems: Perfect for data acquisition systems that need to convert multiple analog signals into digital data quickly and accurately.
- Sensor Interfaces: Often used as a companion to microcontrollers in sensor interface applications.
Q & A
- Q: What is the sampling rate of the TLC541IFNR?
A: The TLC541IFNR has a sampling rate of up to 40,000 samples per second. - Q: How many input channels does the TLC541IFNR have?
A: The TLC541IFNR has 11 single-ended input channels. - Q: What type of data interface does the TLC541IFNR use?
A: The TLC541IFNR uses a Serial Peripheral Interface (SPI) data interface. - Q: What is the operating temperature range of the TLC541IFNR?
A: The operating temperature range is -40°C to 85°C. - Q: Is the TLC541IFNR RoHS compliant?
A: Yes, the TLC541IFNR is lead-free and RoHS compliant. - Q: What is the package type of the TLC541IFNR?
A: The TLC541IFNR comes in a 20-PLCC (9x9) package. - Q: Can the TLC541IFNR use both external and internal reference voltages?
A: Yes, the TLC541IFNR supports both external and internal reference options. - Q: How does the selectable address feature work?
A: The selectable address feature allows multiple ADCs to be integrated into a single system by selecting different addresses. - Q: What is the architecture of the TLC541IFNR?
A: The TLC541IFNR uses a successive approximation register (SAR) architecture. - Q: Where can I find the datasheet for the TLC541IFNR?
A: You can find the datasheet for the TLC541IFNR on the official Texas Instruments website or through authorized distributors like IC-Components and Ovaga Technologies.
