Overview
The TLC1541IN is a 10-bit analog-to-digital converter (ADC) from Texas Instruments, designed for high-resolution data acquisition in various applications. This device features a serial interface and operates on a single supply voltage, making it suitable for microcontroller and digital signal processor (DSP) interfaces. It is built around a 10-bit switched-capacitor successive-approximation ADC and includes an on-chip 12-channel analog multiplexer, a sample-and-hold function, and built-in self-test modes.
Key Specifications
| Parameter | Value |
|---|---|
| Product Category | Analog to Digital Converters - ADC |
| Series | TLC1541 |

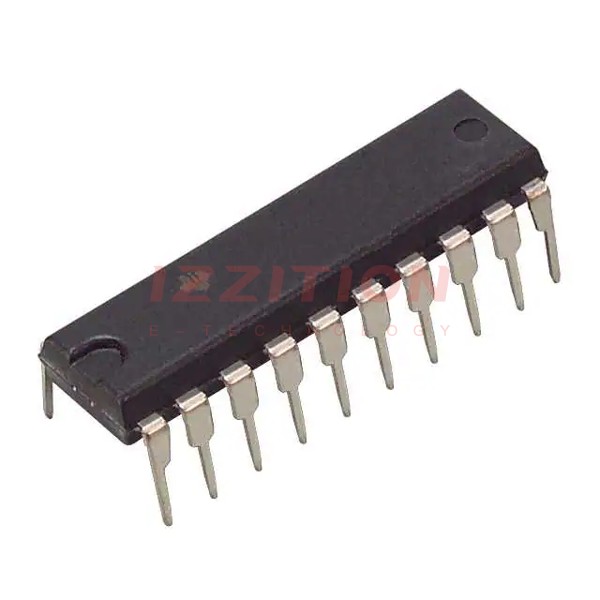

| Package / Case | PDIP-20 |
| Resolution | 10 bit |
| Number of Channels | 12 Channel |
| Interface Type | Serial |
| Sampling Rate | 32 kS/s |
| Input Type | Single-Ended |
| Architecture | SAR |
| Analog Supply Voltage | 4.75 V to 5.5 V |
| Digital Supply Voltage | 4.75 V to 5.5 V |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| INL - Integral Nonlinearity | +/- 1 LSB |
| Number of Converters | 1 Converter |
| Operating Supply Voltage | 4.5 V to 5.5 V |
| Power Dissipation | 6 mW |
| Power Consumption | 6.5 mW |
| Reference Type | External |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 4.5 V |
Key Features
- 10-bit Analog-to-Digital Converter (ADC): The TLC1541IN offers high-resolution data acquisition capabilities with a 10-bit resolution.
- Serial Interface: The device features a serial interface, making it compatible with microcontroller and digital signal processor (DSP) interfaces.
- Single Supply Voltage Operation: It operates on a single supply voltage, simplifying system design and reducing power consumption.
- On-Chip 12-Channel Analog Multiplexer: Allows sampling of any one of 11 inputs or an internal self-test voltage.
- Sample-and-Hold Function: Operates automatically to ensure accurate conversions.
- Built-In Self-Test Mode: Enables self-testing for reliability and diagnostics.
- CMOS Technology: Ensures low power consumption and high reliability.
Applications
The TLC1541IN is commonly used in various applications requiring high-resolution analog-to-digital conversion, including:
- Data Acquisition Systems: For precise measurement and control tasks.
- Industrial Automation: In process control and monitoring systems.
- Consumer Electronics: In devices such as digital multimeters, automotive control systems, and medical devices.
Q & A
- Q: What is the resolution of the TLC1541IN?
A: The TLC1541IN is a 10-bit analog-to-digital converter (ADC). - Q: Can the TLC1541IN be used in industrial automation applications?
A: Yes, it can be used in industrial automation applications for precise measurement and control tasks. - Q: What is the sampling rate of the TLC1541IN?
A: The sampling rate is up to 32 kS/s. - Q: Does the TLC1541IN have built-in self-test modes?
A: Yes, it includes built-in self-test modes for reliability and diagnostics. - Q: What is the operating temperature range of the TLC1541IN?
A: The operating temperature range is from -40°C to +85°C. - Q: What type of interface does the TLC1541IN use?
A: The TLC1541IN uses a serial interface. - Q: How many analog input channels does the TLC1541IN have?
A: It has 12 analog input channels. - Q: What is the power consumption of the TLC1541IN?
A: The power consumption is approximately 6.5 mW. - Q: Is the TLC1541IN compatible with microcontrollers and DSPs?
A: Yes, it is designed to be compatible with microcontrollers and digital signal processors (DSPs). - Q: What technology is used in the TLC1541IN?
A: The TLC1541IN uses CMOS technology.
