Overview

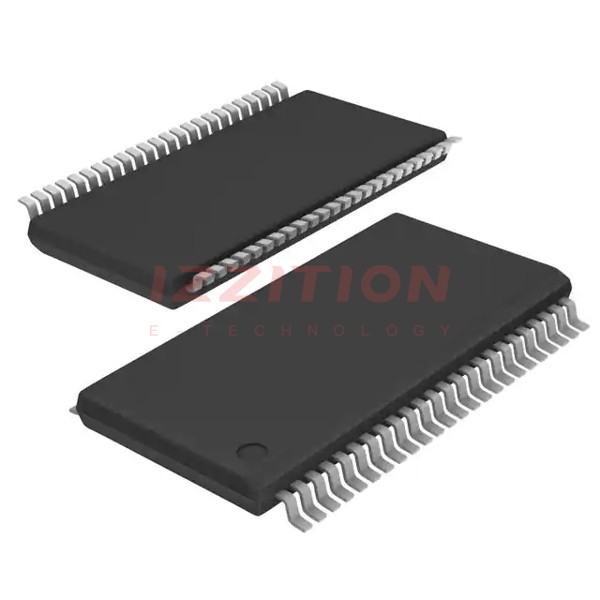

The SN74LVTH16244ADGVR, manufactured by Texas Instruments, is a 16-bit buffer/driver designed with 3-state outputs. This integrated circuit (IC) is part of the 74LVTH series, known for its high-speed performance and low-voltage operation. The device is packaged in a TVSOP-48 format, making it suitable for surface-mount applications. It is widely used in digital systems where buffering and signal driving are essential, such as in data buses and memory interfaces.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Logic Type | Buffer/Driver | - | Non-inverting |
| Number of Bits | 16 | - | - |
| Output Type | 3-State | - | - |
| Supply Voltage | 1.65 - 3.6 | V | - |
| Operating Temperature | -40 to 125 | °C | - |
| Package | TVSOP-48 | - | Surface Mount |
| Output Current | 24 | mA | High/Low |
Key Features
- High-speed operation suitable for low-voltage systems.
- 3-state outputs for bus-oriented applications.
- Robust design with a wide operating temperature range.
- Compact TVSOP-48 package for space-constrained applications.
Applications
The SN74LVTH16244ADGVR is ideal for use in various digital systems, including data buses, memory interfaces, and signal buffering in industrial and consumer electronics. Its high-speed and low-voltage capabilities make it suitable for portable devices and embedded systems where power efficiency and performance are critical.
Q & A
What is the operating voltage range of SN74LVTH16244ADGVR?
The operating voltage range is from 1.65V to 3.6V.
Can this IC be used in automotive applications?
Yes, it is suitable for automotive applications due to its wide operating temperature range and robust design.
What is the output current capability?
The output current capability is 24mA for both high and low states.
Is this device RoHS compliant?
Yes, the SN74LVTH16244ADGVR is RoHS compliant.
What is the package type of this IC?
It comes in a TVSOP-48 package.
What is the maximum propagation delay?
The maximum propagation delay is typically 4.7ns at 2.7V and 4.1ns at 3.3V.
Can it be used in battery-powered devices?
Yes, its low-voltage operation makes it ideal for battery-powered devices.
What is the logic type of this buffer/driver?
It is a non-inverting buffer/driver.
Is this IC suitable for high-speed data transfer?
Yes, it is designed for high-speed operation, making it suitable for high-speed data transfer applications.
What are the typical applications of this IC?
Typical applications include data buses, memory interfaces, and signal buffering in various digital systems.
