Overview
The HD3SS3411TRWARQ1, manufactured by Texas Instruments, is a high-speed bidirectional passive switch designed for multiplexing and demultiplexing applications. This device is part of the automotive-qualified product line, ensuring reliability and performance in demanding environments. It is particularly suited for high-speed interface applications where signal integrity and low power consumption are critical. The HD3SS3411TRWARQ1 is ideal for use in automotive infotainment systems, advanced driver-assistance systems (ADAS), and other high-speed data transmission applications.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Configuration | 2:1 Multiplexer/Demultiplexer | - | Bidirectional |
| Differential Signal Range | Up to 1800 mVpp | mVpp | - |
| Common Mode Voltage Range | 0V to 2V | V | - |
| Operating Temperature | -40°C to 105°C | °C | Automotive Qualified |

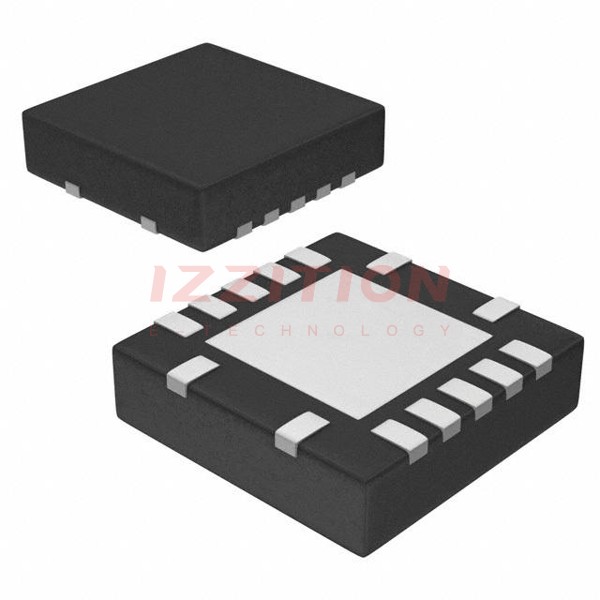

| Package | WQFN-14 | - | - |
Key Features
- High-speed bidirectional signal switching
- Supports differential signaling up to 1800 mVpp
- Low power consumption
- Automotive qualified for harsh environments
- Adaptive tracking ensures consistent channel performance
Applications
The HD3SS3411TRWARQ1 is widely used in automotive electronics, particularly in infotainment systems and ADAS. Its ability to handle high-speed data transmission makes it suitable for applications such as PCIe, USB, and DisplayPort interfaces. Additionally, it is used in industrial automation and consumer electronics where reliable signal switching is required.
Q & A
What is the operating voltage range of HD3SS3411TRWARQ1?
The device operates within a common mode voltage range of 0V to 2V.
Is HD3SS3411TRWARQ1 suitable for automotive applications?
Yes, it is automotive qualified, making it suitable for use in harsh environments.
What is the package type of HD3SS3411TRWARQ1?
It comes in a WQFN-14 package.
Can HD3SS3411TRWARQ1 handle high-speed data transmission?
Yes, it supports high-speed bidirectional signal switching.
What is the differential signal range supported by HD3SS3411TRWARQ1?
It supports differential signaling up to 1800 mVpp.
What are the typical applications of HD3SS3411TRWARQ1?
It is used in automotive infotainment systems, ADAS, and high-speed data transmission applications.
Does HD3SS3411TRWARQ1 support adaptive tracking?
Yes, it ensures consistent channel performance across the common mode voltage range.
What is the operating temperature range of HD3SS3411TRWARQ1?
It operates from -40°C to 105°C.
Is HD3SS3411TRWARQ1 a multiplexer or demultiplexer?
It can function as both a 2:1 multiplexer and demultiplexer.
What makes HD3SS3411TRWARQ1 suitable for industrial applications?
Its reliability, low power consumption, and high-speed capabilities make it ideal for industrial automation.
