Overview
The ADS5400IPZPR is a high-performance, 12-bit analog-to-digital converter (ADC) produced by Texas Instruments. This device operates at a sample rate of 1 GSPS and is designed for the conversion of signals up to 2 GHz of input frequency. It features outstanding low noise performance and spurious-free dynamic range over a large input frequency range. The ADS5400IPZPR is powered by both 5-V and 3.3-V supplies and provides LVDS-compatible digital outputs. The analog input buffer isolates the internal switching of the track and hold from disturbing the signal source, and the simple 3-stage pipeline architecture ensures extremely low latency, making it suitable for time-critical applications.
Key Specifications
| Specification | Value |
|---|---|
| Number of Bits | 12 |
| Sampling Rate | 1 GSPS |
| Input Bandwidth | 2.1 GHz |
| SNR at 1.2 GHz | 57.6 dBFS |
| SFDR at 1.2 GHz | 66 dBc |
| Latency | 7 Clock Cycles |
| Full-Scale Range | 1.5-V to 2-V Selectable |
| Data Interface | LVDS-Compatible, Parallel |

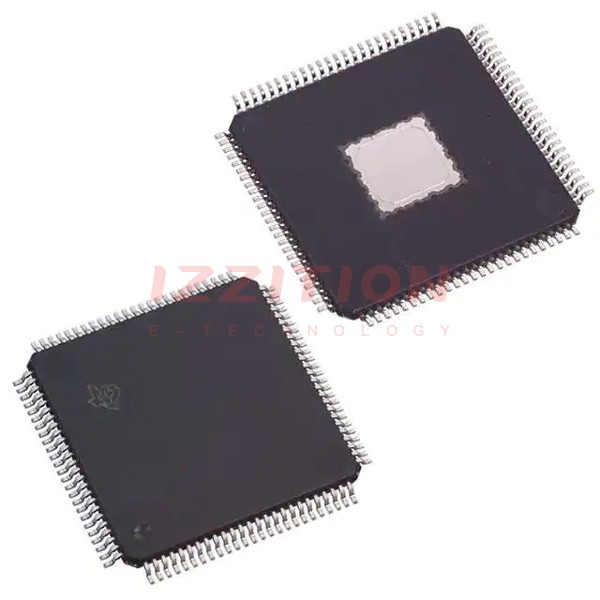

| Package Type | 100-Pin HTQFP PowerPAD |
| Operating Temperature Range | -40°C to 85°C |
| Total Power Dissipation | 2.15 W |
Key Features
- 1-GSPS Sample Rate
- 12-Bit Resolution
- 2.1 GHz Input Bandwidth
- Low noise performance and spurious-free dynamic range
- LVDS-Compatible Outputs, 1 or 2 Bus Options
- Interleave Friendly: Internal Adjustments for Gain, Phase, and Offset
- On-Chip Analog Buffer
- 100-Pin HTQFP PowerPAD Package
- Industrial Temperature Range of -40°C to 85°C
Applications
- Test and Measurement Instrumentation
- Ultra-Wide Band Software-Defined Radio
- Data Acquisition
- Power Amplifier Linearization
- Signal Intelligence and Jamming
- Radar Systems
Q & A
- What is the sample rate of the ADS5400IPZPR?
The sample rate of the ADS5400IPZPR is 1 GSPS (Gigasamples per second).
- What is the resolution of the ADS5400IPZPR?
The resolution of the ADS5400IPZPR is 12 bits.
- What is the input bandwidth of the ADS5400IPZPR?
The input bandwidth of the ADS5400IPZPR is 2.1 GHz.
- What is the SNR at 1.2 GHz for the ADS5400IPZPR?
The SNR at 1.2 GHz for the ADS5400IPZPR is 57.6 dBFS.
- What is the SFDR at 1.2 GHz for the ADS5400IPZPR?
The SFDR at 1.2 GHz for the ADS5400IPZPR is 66 dBc.
- What is the latency of the ADS5400IPZPR?
The latency of the ADS5400IPZPR is 7 clock cycles.
- What type of package does the ADS5400IPZPR use?
The ADS5400IPZPR uses a 100-Pin HTQFP PowerPAD package.
- What is the operating temperature range of the ADS5400IPZPR?
The operating temperature range of the ADS5400IPZPR is -40°C to 85°C.
- What are some common applications of the ADS5400IPZPR?
The ADS5400IPZPR is commonly used in test and measurement instrumentation, ultra-wide band software-defined radio, data acquisition, power amplifier linearization, signal intelligence and jamming, and radar systems.
- Is the ADS5400IPZPR RoHS compliant?
