Overview

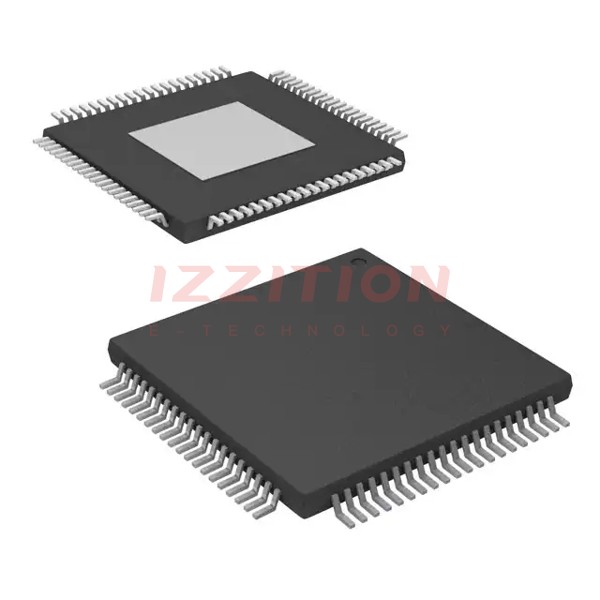

The ADS5295PFPR is a low-power, 12-bit, 100-MSPS, 8-channel analog-to-digital converter (ADC) produced by Texas Instruments. This device is designed for high channel count data acquisition systems, offering low power consumption and integration of multiple channels in a compact package. The ADS5295PFPR features serial low-voltage differential signaling (LVDS) outputs, which reduce the number of interface lines and enable high system integration. The device is available in a 12-mm × 12-mm QFP-80 package and is specified over the –40°C to +85°C operating temperature range.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Bits | 12 |
| Sampling Rate | 100 MSPS |
| Number of Channels | 8 |
| Input Type | Differential |
| Data Interface | LVDS - Serial |
| Architecture | Pipelined |
| Reference Type | Internal, External |
| Analog Supply Voltage | 1.7 V ~ 1.9 V |
| Digital Supply Voltage | 1.7 V ~ 1.9 V |
| Operating Temperature Range | –40°C to +85°C |
| Package | 80-HTQFP (12x12) |
| Pins | 80 |
Key Features
- Low Power Consumption: 80 mW per channel at 100 MSPS.
- High SNR and SFDR: SNR of 70.6 dBFS and SFDR of 85 dBc at 10 MHz, 100 MSPS.
- Serial LVDS Outputs: One- or two-wire serialized LVDS outputs per channel, with up to 100 MSPS sample rate using the two-wire interface.
- Digital Processing Block: Includes programmable FIR decimation filter, IIR high-pass filter, programmable digital gain (0 dB to 12 dB), low-frequency noise suppression mode, and programmable mapping between ADC input channels and LVDS output pins.
- Channel Averaging Mode: Allows for averaging of channels to improve signal quality.
- LVDS Test Patterns: Variety of test patterns to verify data capture by FPGA or receiver.
Applications
The ADS5295PFPR is suitable for various high channel count data acquisition systems, including but not limited to:
- Medical imaging and diagnostics
- Industrial automation and control systems
- Aerospace and defense applications
- High-speed data acquisition systems in scientific research
- Telecommunications and wireless communication systems
Q & A
- What is the maximum sample rate of the ADS5295PFPR?
The maximum sample rate is 100 MSPS.
- How many channels does the ADS5295PFPR have?
The device has 8 channels.
- What type of data interface does the ADS5295PFPR use?
The device uses serial LVDS (Low-Voltage Differential Signaling) outputs.
- What is the operating temperature range of the ADS5295PFPR?
The operating temperature range is –40°C to +85°C.
- Can the ADS5295PFPR be configured as a 10-bit ADC?
Yes, the device can be configured as an 8-channel, 10-bit ADC with 10x LVDS serialization to reduce the output data rate.
- What is the power consumption per channel at 100 MSPS?
The power consumption is 80 mW per channel at 100 MSPS.
- Does the ADS5295PFPR have internal and external reference options?
Yes, the device can be driven with either internal or external references.
- What digital processing features are included in the ADS5295PFPR?
The device includes programmable FIR decimation filter, IIR high-pass filter, programmable digital gain, low-frequency noise suppression mode, and programmable mapping between ADC input channels and LVDS output pins.
- Is the ADS5295PFPR RoHS compliant?
Yes, the device is RoHS compliant by exemption.
- What is the package type and size of the ADS5295PFPR?
The device is packaged in an 80-HTQFP (12x12 mm) package.
