Overview

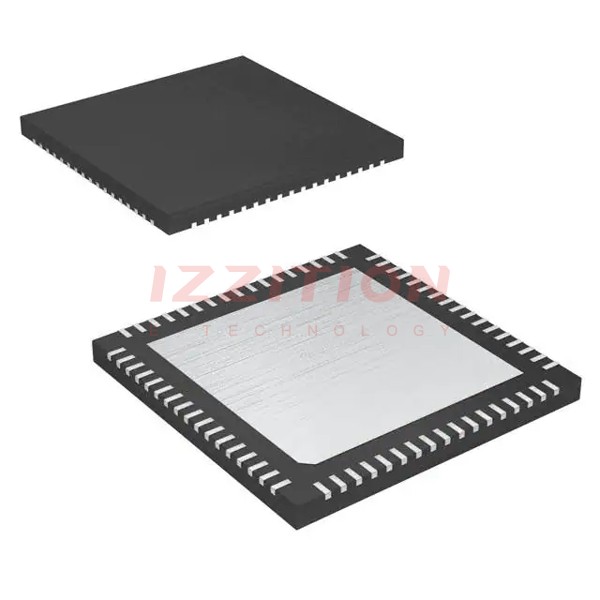

The ADC12J2700NKET is a high-performance, 12-bit, 2.7 GSPS RF sampling analog-to-digital converter (ADC) produced by Texas Instruments. This device is designed for wideband sampling and digital tuning, enabling the direct sampling of a large block of frequency spectrum at RF frequencies. It features an integrated Digital Down Converter (DDC) that provides digital filtering and down-conversion, making the selected frequency block available on a JESD204B serial interface. The ADC12J2700NKET operates over an industrial temperature range of –40°C to 85°C and is packaged in a 68-pin VQFN package.
Key Specifications
| Parameter | Value |
|---|---|
| Max Sampling Rate | 1600 or 2700 MSPS |
| Min Sampling Rate | 1000 MSPS |
| DDC Output Word Size | 15-Bit Complex (30 bits total) |
| Bypass Output Word Size | 12-Bit Offset Binary |
| Noise Floor | –147.3 dBFS/Hz (ADC12J2700) |
| IMD3 | −64 dBc (FIN= 2140 MHz ± 30 MHz at −13 dBFS) |
| FPBW (–3 dB) | 3.2 GHz |
| Peak NPR | 46 dB |
| Supply Voltages | 1.9 V and 1.2 V |
| Power Consumption | Bypass (2700 MSPS): 1.8 W, Bypass (1600 MSPS): 1.6 W, Power Down Mode: <50 mW |
| Package | 68-pin VQFN |
| Operating Temperature Range | –40°C to 85°C |
Key Features
- Excellent Noise and Linearity up to and beyond FIN= 3 GHz
- Configurable DDC with decimation factors from 4 to 32 (Complex Baseband Out)
- Bypass Mode for Full Nyquist Output Bandwidth
- Usable Output Bandwidths: 540 MHz at 4x decimation and 2700 MSPS, 320 MHz at 4x decimation and 1600 MSPS, 67.5 MHz at 32x decimation and 2700 MSPS, 40 MHz at 32x decimation and 1600 MSPS
- Low Pin-Count JESD204B Subclass 1 Interface
- Automatically Optimized Output Lane Count
- Embedded Low Latency Signal Range Indication
- Low Power Consumption
Applications
The ADC12J2700NKET is suitable for various high-speed data acquisition and signal processing applications, including but not limited to:
- Radar Systems
- Electronic Warfare
- Wideband Communication Systems
- Test and Measurement Equipment
- Aerospace and Defense Systems
Q & A
- What is the maximum sampling rate of the ADC12J2700NKET?
The maximum sampling rate is 2700 MSPS or 1600 MSPS. - What is the noise floor of the ADC12J2700NKET?
The noise floor is –147.3 dBFS/Hz. - What is the output word size in DDC mode?
The output word size in DDC mode is 15-Bit Complex (30 bits total). - What is the bypass output word size?
The bypass output word size is 12-Bit Offset Binary. - What is the operating temperature range of the ADC12J2700NKET?
The operating temperature range is –40°C to 85°C. - What is the package type and pin count of the ADC12J2700NKET?
The package type is 68-pin VQFN. - What interface does the ADC12J2700NKET use for data output?
The device uses a JESD204B serial interface. - What are the supply voltages for the ADC12J2700NKET?
The supply voltages are 1.9 V and 1.2 V. - What is the power consumption in bypass mode at 2700 MSPS?
The power consumption in bypass mode at 2700 MSPS is 1.8 W. - Does the ADC12J2700NKET have a power-down mode?
Yes, the power-down mode consumes less than 50 mW.
