Overview
The ADC12DJ5200RFAAV is a high-performance, RF-sampling, 12-bit analog-to-digital converter (ADC) designed by Texas Instruments. This device is capable of operating in either dual-channel mode at up to 5.2 GSPS per channel or single-channel mode at up to 10.4 GSPS. It features a wide usable input frequency range of over 10 GHz, enabling direct RF sampling of L-band, S-band, C-band, and X-band frequencies. The ADC is particularly suited for demanding applications in communication systems, radar, and test equipment due to its exceptional performance and integration features.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12-bit |
| Maximum Sampling Rate (Single-Channel) | Up to 10.4 GSPS |
| Maximum Sampling Rate (Dual-Channel) | Up to 5.2 GSPS per channel |
| Analog Input Bandwidth (–3dB) | 8 GHz |
| Usable Input Frequency Range | > 10 GHz |
| Full-Scale Input Voltage (VFS, default) | 0.8 VPP |
| Noise Floor (–20dBFS, VFS = 1VPP-DIFF) | Dual-channel mode: –151.8 dBFS/Hz, Single-channel mode: –154.4 dBFS/Hz |
| ENOB (Dual channel, FIN = 2.4 GHz) | 8.6 Bits |
| Power Consumption | 4 W |
| Power Supplies | 1.1 V, 1.9 V |
| Interface Type | JESD204C (compatible with JESD204B) |
| Maximum Lane Rate | Up to 17.16 Gbps |
| Data Encoding Schemes | 64b/66b and 8b/10b |
| Operating Temperature Range | –40°C to 85°C |
Key Features
- High-Speed Sampling: Supports up to 10.4 GSPS in single-channel mode and up to 5.2 GSPS per channel in dual-channel mode.
- Wide Input Bandwidth: Analog input bandwidth of 8 GHz and usable input frequency range above 10 GHz.
- Advanced Synchronization: Features noiseless aperture delay adjustment, SYSREF timing calibration, and timestamp for sample marking to simplify system design for multi-channel applications.
- High-Speed Interface: JESD204C serial data interface with support for 64b/66b and 8b/10b encoding schemes, and a maximum lane rate of 17.16 Gbps.
- Digital Down-Converters (DDC): Optional DDCs with 4x, 8x, 16x, and 32x complex decimation and four independent 32-Bit NCOs per DDC.
- Programmable FIR Filter: For on-chip equalization to improve signal quality.
- Low Power Consumption: 4 W power consumption to minimize heat dissipation and simplify thermal management.
Applications
- Communication Systems: Suitable for high-speed data acquisition in 5G and other wireless communication systems.
- Radar Systems: Direct X-band sampling capabilities make it ideal for radar applications.
- Test and Measurement Equipment: Used in oscilloscopes and other test equipment requiring high measurement accuracy and wideband signal digitization.
- Frequency Agile Systems: Supports direct RF sampling of L-band, S-band, C-band, and X-band frequencies.
Q & A
- Q: What is the maximum sampling rate of the ADC12DJ5200RFAAV?
A: The ADC12DJ5200RFAAV supports a maximum sampling rate of up to 10.4 GSPS in single-channel mode and up to 5.2 GSPS per channel in dual-channel mode.
- Q: What is the analog input bandwidth of the ADC12DJ5200RFAAV?
A: The analog input bandwidth is 8 GHz (–3dB) with a usable input frequency range above 10 GHz.
- Q: What interface does the ADC12DJ5200RFAAV use?
A: The ADC12DJ5200RFAAV uses a JESD204C serial data interface, which is also compatible with JESD204B receivers.
- Q: What are the power consumption and power supplies of the ADC12DJ5200RFAAV?
A: The power consumption is 4 W, and the device operates with 1.1 V and 1.9 V power supplies.
- Q: Does the ADC12DJ5200RFAAV support digital down-converters (DDC)?
A: Yes, the ADC12DJ5200RFAAV supports optional DDCs with 4x, 8x, 16x, and 32x complex decimation and four independent 32-Bit NCOs per DDC.
- Q: What is the operating temperature range of the ADC12DJ5200RFAAV?
A: The operating temperature range is –40°C to 85°C.
- Q: Is the ADC12DJ5200RFAAV suitable for wideband signal digitization?
A: Yes, it is designed for capturing wideband signals with its high input bandwidth and fast sampling rates.
- Q: What synchronization features does the ADC12DJ5200RFAAV offer?
A: It features noiseless aperture delay adjustment, SYSREF timing calibration, and timestamp for sample marking to simplify system design for multi-channel applications.
- Q: Does the ADC12DJ5200RFAAV have any on-chip equalization capabilities?
A: Yes, it includes a programmable FIR filter for on-chip equalization.
- Q: What is the package type of the ADC12DJ5200RFAAV?

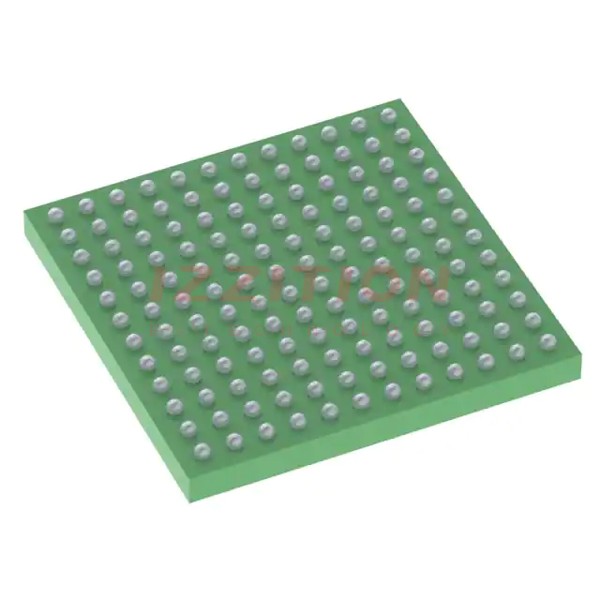

A: The device is packaged in a 144-ball FCBGA (Flip-Chip Ball Grid Array).
