Overview

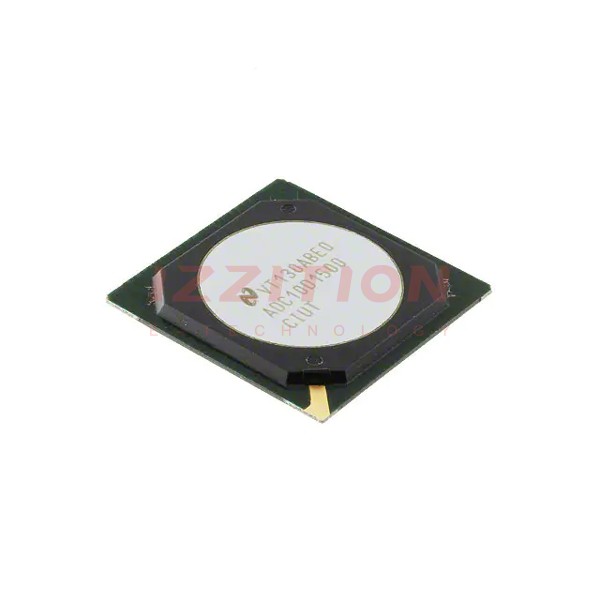

The ADC12D1600RFIUT from Texas Instruments is a 12-bit, RF-sampling analog-to-digital converter (ADC) capable of operating at high sampling rates. This device can directly sample input frequencies up to and above 2.7 GHz, making it suitable for applications requiring high bandwidth and excellent noise and linearity performance at RF frequencies. The ADC is packaged in a lead-free 292-ball thermally enhanced BGA package and operates over an industrial temperature range of -40°C to 85°C.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 Bits |
| Sampling Rate | Interleaved 3.2-GSPS and 2-GSPS, Dual 1600/1000 MSPS |
| Input Type | Differential |
| Data Interface | LVDS - Parallel |
| IMD3 (Fin = 2.7 GHz at 13 dBFS) | 63.7/73 dBFS (Typical) |
| IMD3 (Fin = 2.7 GHz at 16 dBFS) | 66.7/85 dBFS (Typical) |
| Noise Floor | 154.6/154 dBm/Hz (Typical) |
| Power | 3.94/3.42 W (Typical) |
| ENOB | 9.2/9.4 Bits (Typical) |
| SNR | 58.2/58.8 dB (Typical) |
| SFDR | 66.7/71.9 dBc (Typical) |
| Power per Channel | 1.97/1.71 W (Typical) |
| Package | 292-ball BGA (NXA) |
| Operating Temperature Range | -40°C to 85°C |
Key Features
- Excellent noise and linearity performance up to and above 2.7 GHz
- Configurable to either 3.2-GSPS or 2-GSPS interleaved or 1600/1000 MSPS dual ADC
- New DESCLKIQ mode for high bandwidth, high sampling rate applications
- Pin-compatible with ADC10D1x00, ADC12D1x00
- AutoSync feature for multi-chip synchronization
- Internally terminated, buffered, differential analog inputs
- Interleaved timing automatic and manual skew adjust
- Test patterns at output for system debug
- Time stamp feature to capture external trigger
- Programmable gain, offset, and tADAdjust feature
- 1:1 non-demuxed or 1:2 demuxed LVDS outputs
Applications
The ADC12D1600RFIUT is designed for high-performance applications requiring direct RF sampling, such as radar systems, electronic warfare, and high-speed data acquisition. Its excellent noise and linearity performance at RF frequencies make it suitable for use in various military, aerospace, and telecommunications applications.
Q & A
- What is the resolution of the ADC12D1600RFIUT? The ADC12D1600RFIUT has a resolution of 12 bits.
- What are the sampling rates of the ADC12D1600RFIUT? The ADC can operate at interleaved 3.2-GSPS and 2-GSPS, or as dual 1600/1000 MSPS ADCs.
- What type of inputs does the ADC12D1600RFIUT have? The ADC has differential analog inputs.
- What is the data interface of the ADC12D1600RFIUT? The data interface is LVDS - Parallel.
- What is the operating temperature range of the ADC12D1600RFIUT? The operating temperature range is -40°C to 85°C.
- Is the ADC12D1600RFIUT pin-compatible with other ADC models? Yes, it is pin-compatible with ADC10D1x00 and ADC12D1x00 models.
- Does the ADC12D1600RFIUT support multi-chip synchronization? Yes, it features an AutoSync feature for multi-chip synchronization.
- What is the power consumption of the ADC12D1600RFIUT? The typical power consumption is 3.94/3.42 W, with power per channel being 1.97/1.71 W.
- What are the noise and linearity performance characteristics of the ADC12D1600RFIUT? It has excellent noise and linearity performance up to and above 2.7 GHz, with IMD3 values of 63.7/73 dBFS and 66.7/85 dBFS at different input levels.
- Does the ADC12D1600RFIUT support programmable gain and offset? Yes, it features programmable gain, offset, and tADAdjust.
