Overview

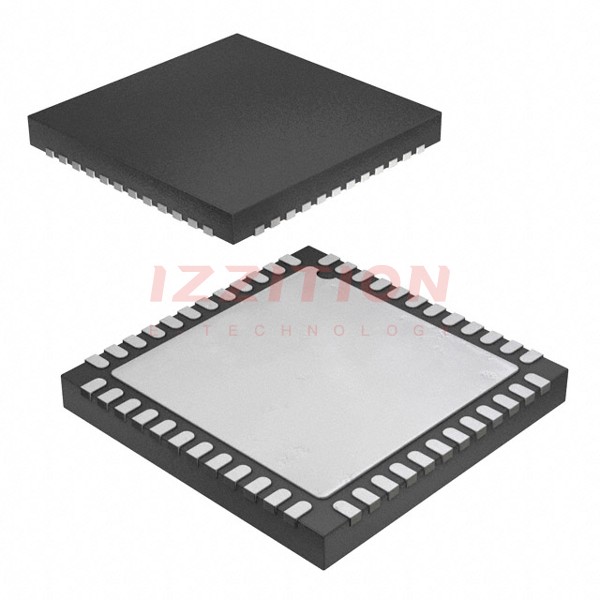

The AD9253TCPZR7-125EP is a quad, 14-bit, 125 MSPS analog-to-digital converter (ADC) designed by Analog Devices Inc. This ADC is optimized for low cost, low power, small size, and ease of use, making it ideal for applications where high dynamic performance and compact packaging are critical. It operates with a single 1.8 V power supply and supports LVPECL-, CMOS-, and LVDS-compatible sample rate clocks. The device features an on-chip sample-and-hold circuit and does not require external reference or driver components for many applications.
Key Specifications
| Parameter | Typical Value | Unit |
|---|---|---|
| Number of Bits | 14 | |
| Sampling Rate | 125 MSPS | |
| Supply Voltage | 1.8 V | V |
| Power Consumption per Channel | 110 mW | mW |
| Signal-to-Noise Ratio (SNR) | 74 dB (to Nyquist) | dBFS |
| Spurious-Free Dynamic Range (SFDR) | 90 dBc (to Nyquist) | dBc |
| Differential Nonlinearity (DNL) | ±0.75 LSB | LSB |
| Integral Nonlinearity (INL) | ±2.0 LSB | LSB |
| Analog Bandwidth | 650 MHz | MHz |
| Input Voltage Range | 2 V p-p | V p-p |
| Operating Temperature Range | −55°C to +125°C | °C |
| Package Type | 48-Lead LFCSP |
Key Features
- Serial LVDS (ANSI-644, default) and low power, reduced signal option (similar to IEEE 1596.3)
- Full chip and individual channel power-down modes
- Flexible bit orientation
- Built-in and custom digital test pattern generation
- Multichip sync and clock divider
- Programmable output clock and data alignment
- Programmable output resolution
- Standby mode
- Serial port control via SPI
- Data clock output (DCO) and frame clock output (FCO)
Applications
- Medical ultrasound
- High-speed imaging
- Quadrature radio receivers
- Diversity radio receivers
- Test equipment
Q & A
- What is the sampling rate of the AD9253TCPZR7-125EP?
The AD9253TCPZR7-125EP has a sampling rate of up to 125 MSPS.
- What is the power consumption per channel at 125 MSPS?
The power consumption per channel is 110 mW at 125 MSPS.
- What is the signal-to-noise ratio (SNR) of the AD9253TCPZR7-125EP?
The SNR is 74 dB to Nyquist.
- What is the spurious-free dynamic range (SFDR) of the AD9253TCPZR7-125EP?
The SFDR is 90 dBc to Nyquist.
- What is the input voltage range of the AD9253TCPZR7-125EP?
The input voltage range is 2 V p-p.
- Does the AD9253TCPZR7-125EP require external reference or driver components?
No, the AD9253TCPZR7-125EP does not require external reference or driver components for many applications.
- What are the power-down modes available for the AD9253TCPZR7-125EP?
The device supports full chip and individual channel power-down modes.
- What is the operating temperature range of the AD9253TCPZR7-125EP?
The operating temperature range is −55°C to +125°C.
- What type of package does the AD9253TCPZR7-125EP come in?
The device is available in a 48-Lead LFCSP package.
- How is the AD9253TCPZR7-125EP controlled?
The device can be controlled via a serial port interface (SPI).
